Lightweight in-line three-cylinder outboards

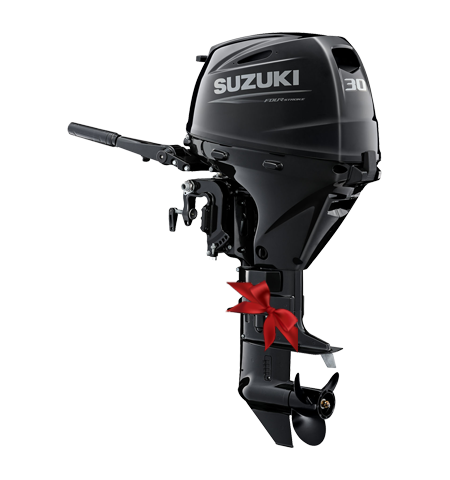

TILLER MODEL

Suzuki engineers have packed the new in-line three-cylinder DF25A & DF30A range with some of Suzuki’s finest technologies giving them class-leading advantages that put them ahead of the rest. Engineering lightweight outboards has long been a Suzuki hallmark. Both models are first in class to feature friction reducing roller rocker arms and each utilises offset crankshafts resulting in smoother operation and greater mechanical efficiency.

Fuel is supplied with Suzuki’s Lean Burn Control system and a Battery-Less Fuel injection system that gives these outboards remarkable improvements fuel efficiency while maintaining excellent power and performance. A convenient LED monitoring system provides engine operating status at a glance.

Tiller model available in Long (L) shaft length.

Discover Suzuki's 3+3 year Warranty for recreational used outboards, plus other terms and conditions for commercial and government registered outboards under Suzuki's Warranty Policy.

Specifications

Recommended Transom Height (mm)S: 381mm, L: 508mm
Weight (Kg*)Tiller/Manual: L: 70kg Tiller/Electric: L: 74kg Remote: S: 71kg, L: 72kg
Engine TypeIn-line 3 cylinder, 4-stroke, OHC
Piston Displacement (cm³)490cm³
Maximum Output (kw)22.1kW
Steering-
Recommended FuelRON91 / AKI87
Alternator12V 14A
Gear Ratio2.09 : 1
ExhaustThrough Prop Hub Exhaust
Starting SystemElectric / Manual
Cylinders-
Fuel Delivery SystemBattery-less Electronic Fuel Injection
Bore x Stroke (mm)60.4 x 57mm
Full Throttle Operating Range (rpm)5,300 - 6,300rpm
Oil Pan Capacity (L)1.5L
Fuel Tank Capacity (L)Separate 25L (optional)
Trim MethodManual Trim & Tilt, Gas Assisted Tilt, Power Trim & Tilt
Gear ShiftF-N-R
Propeller Selection (Pitch)9"-15"
